Glass lens with non-symmetrical illumination (oval) | A469 CE
Optics with elliptical light distribution and high efficiency.
| Category: | TIR Lenses |
|---|---|
| Diameter: | 27 |
| Beam angle: | 20x40° |

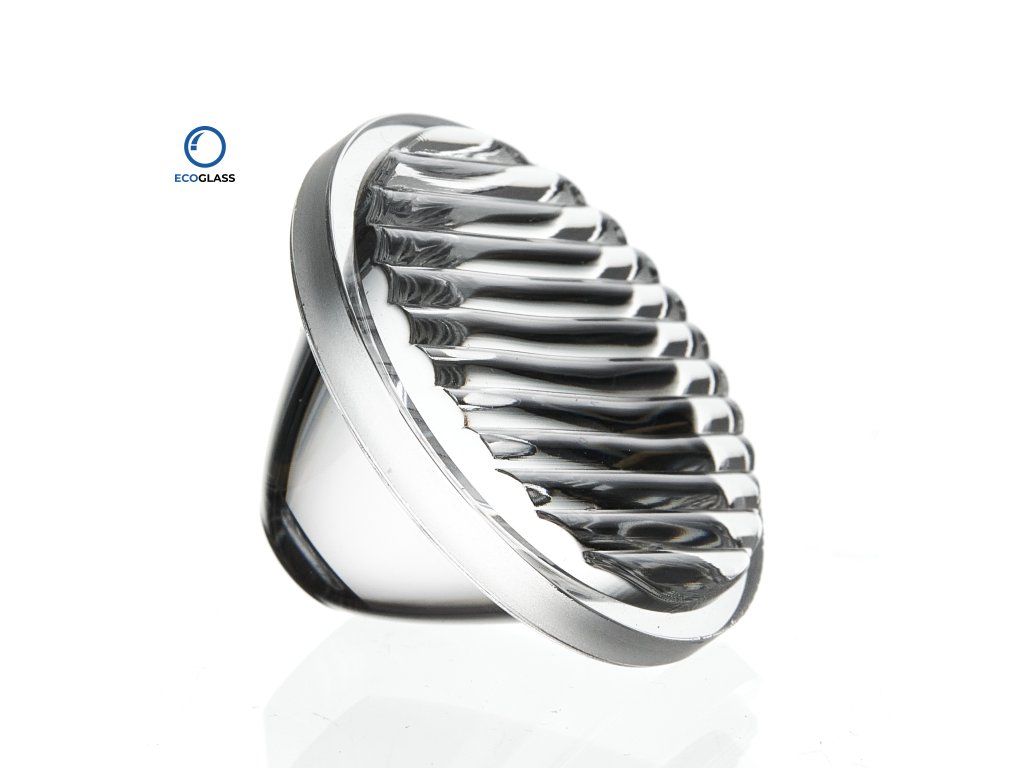

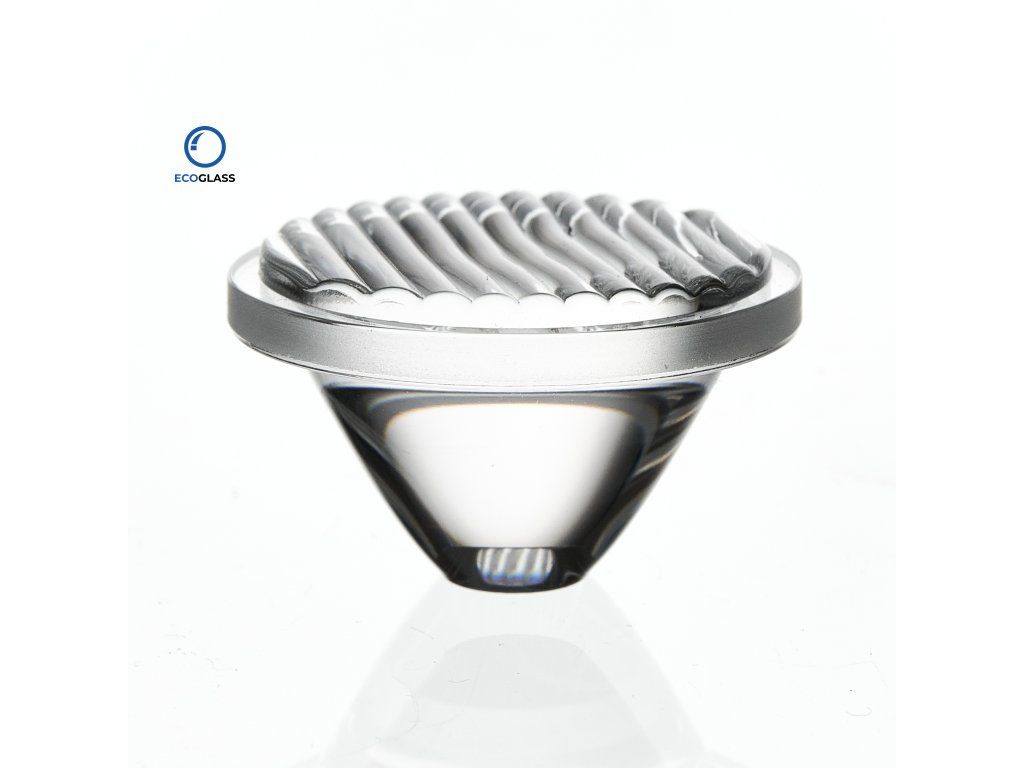

Lens A469 CE is designed for Cree XP-G or similar small light source. This lens is our only TIR optics with non-symmetrical illumination. Outer lens surface with waves is designed to give rectangular light pattern. More information can be found in simulation results among files for download. You can also download .ies and .ldt data and test this lens in your optical system.
-
IES data for lens and LED Cree XP-G (364 lm) (9.7 kB)
-
LDT data for lens and LED Cree XP-G4 (75.9 kB)
-
optical simulation (233.6 kB)
-
drawing (196.2 kB)
